The global shift toward renewable energy has made battery storage a strategic asset rather than an optional upgrade. A Solar Battery 20kWh system represents one of the most efficient and scalable solutions for residential and commercial solar energy storage in 2026. Designed with a rack-mount LiFePO4 battery architecture, this configuration delivers high cycle life, superior safety, modular expansion, and optimized long-term return on investment.
As electricity prices rise and grid reliability becomes increasingly uncertain, integrating a 20kWh solar storage system allows property owners to maximize solar self-consumption, protect against outages, and stabilize energy costs. This in-depth guide explores the technical foundation, performance metrics, cost analysis, safety standards, installation requirements, and long-term financial viability of a rack-mounted lithium iron phosphate battery system.
Understanding What a 20kWh Solar Battery Really Means
A 20kWh solar battery stores twenty kilowatt-hours of usable electricity. In measurable terms, this means it can deliver 20 kilowatts for 1 hour, 10 kilowatts for 2 hours, or 2 kilowatts for 10 hours. However, real-world runtime depends on inverter efficiency, discharge rate, and actual load demand.
Modern lithium iron phosphate batteries allow 90–100 percent Depth of Discharge (DoD). Unlike lead-acid systems, which often limit usable capacity to 50 percent, LiFePO4 chemistry ensures nearly the full rated energy is available daily without accelerating degradation.
For a typical household consuming 25–35kWh per day, a 20kWh home backup battery covers most critical loads during grid failure. When paired with solar panels producing 15–25kWh daily, the battery continuously recharges, enabling extended energy independence.
Why Rack Mount LiFePO4 Architecture Dominates in 2026

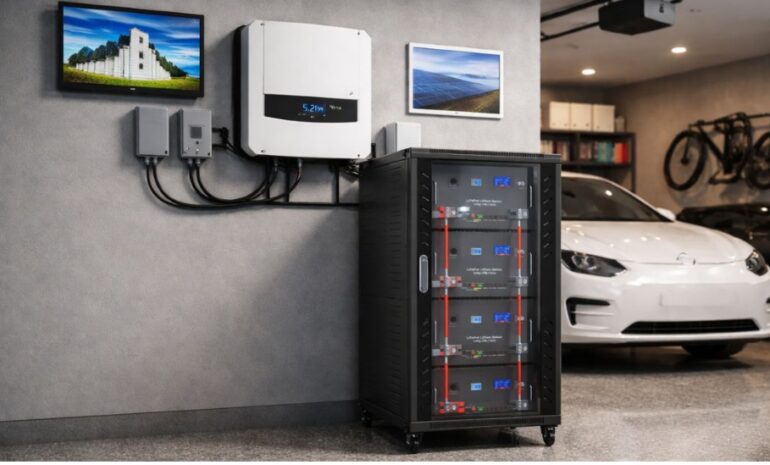

Rack-mounted systems are engineered using the standardized 19-inch cabinet format common in telecom and data infrastructure. This structured approach improves scalability, airflow management, serviceability, and cable organization.

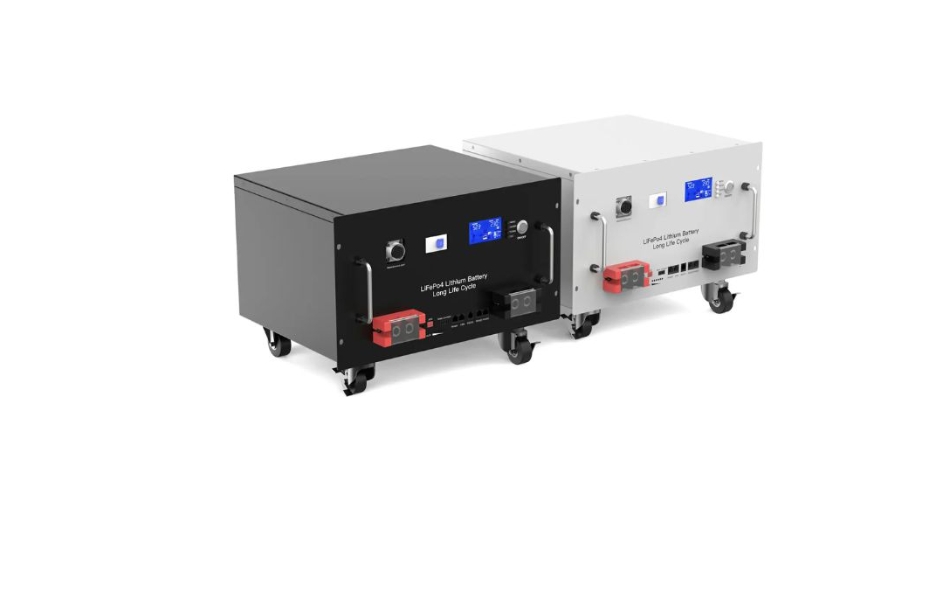

A rack-mount battery Lifepo4 configuration offers modular stacking. Instead of a single large wall unit, energy capacity is divided into independent battery modules installed within a steel enclosure. Each module integrates its own Battery Management System (BMS), allowing real-time communication and monitoring.
Key architectural advantages include:
- Vertical space optimization
- Parallel scalability up to 80kWh or higher
- Simplified maintenance access
- Stable thermal distribution
- Enhanced structural protection
Because LiFePO4 chemistry is resistant to thermal runaway and operates over a wide temperature range, combining it with rack design yields one of the safest indoor energy storage systems available today.
Technical Performance Metrics That Define Quality
To evaluate a Solar Battery 20kWh system professionally, deeper metrics must be analyzed beyond capacity alone.
Nominal Voltage typically ranges from 48V to 51.2V, optimized for compatibility with hybrid inverters.
Cycle Life should exceed 6000 cycles at 80 percent DoD. At one full cycle daily, this equals more than 16 years of operation.
C-Rating determines discharge capability. Most residential rack systems operate at 0.5C continuous discharge, meaning a 20kWh battery can safely supply 10kW of sustained output.
Internal Resistance impacts efficiency. Lower resistance reduces heat generation and improves the stability of energy delivery.
Round-Trip Efficiency should exceed 95 percent to minimize energy loss during charging and discharging.
These metrics collectively determine durability, safety, and financial viability.
LiFePO4 vs Competing Chemistries
Battery chemistry significantly impacts long-term ownership cost.
LiFePO4 provides over 6000 cycles, high thermal stability, a non-combustible phosphate structure, and consistent voltage output. Nickel-manganese-cobalt batteries offer higher energy density but shorter lifespan and increased fire sensitivity. Lead-acid batteries are inexpensive up front but suffer from low usable capacity, high weight, and high maintenance requirements.
For solar energy storage cabinets requiring daily cycling, lithium iron phosphate delivers the strongest balance between safety and longevity.
Real-World Runtime Scenarios
Scenario One: Essential Load Backup
Refrigerator (150W), lighting (300W), internet and electronics (200W), fans (300W), and television (150W). Total load equals 1.1kW. Dividing 20kWh by 1.1kW results in approximately 18 hours of backup.
Scenario Two: Moderate Comfort Mode
Includes one 1.5-ton air conditioner consuming 1.5kW plus essential loads totaling 1kW. Combined demand equals 2.5kW. Runtime equals 8 hours without solar recharge.
Scenario Three: Solar-Assisted Operation
If rooftop panels generate 12kWh during daylight, the battery partially recharges, extending usable energy across multiple days.
Accurate load auditing ensures correct sizing and avoids underperformance expectations.
Installation and System Integration
Professional installation significantly influences system longevity. The rack cabinet should be placed in a dry, ventilated indoor environment such as a garage or utility room. While LiFePO4 chemistry generates minimal heat, airflow helps maintain an optimal operating temperature.
Hybrid inverters must support lithium communication protocols such as CAN or RS485. Proper integration enables coordinated charging algorithms, accurate state-of-charge, and overcurrent protection.
DC cable sizing must align with maximum discharge rates. Circuit breakers and surge protection devices ensure compliance with safety codes.
Certification and Compliance Standards
High-quality rack systems meet international certification standards that validate safety and durability.
Common certifications include UL 1973 for stationary battery safety, IEC 62619 for industrial lithium cells, CE marking for European compliance, and UN38.3 for transport safety.
Certification confirms that the Solar Battery 20kWh system has undergone rigorous electrical, thermal, vibration, and short-circuit testing.
Cost Analysis and Market Pricing in 2026
Market pricing for a 20kWh solar storage system ranges from $4,500 to $8,000, depending on the manufacturer, warranty, and integrated smart monitoring.
Cost per kilowatt-hour averages $225 to $400. Although higher upfront than lead acid, lithium systems offer lower lifetime cost due to extended cycle life and minimal maintenance.
Installation costs vary by region and electrical complexity, but typically account for 10 to 20 percent of the total project expense.
Financial Return and Payback Period
Energy storage increases solar self-consumption and reduces peak-time grid purchases. If electricity costs $0.20 per kWh and a household offsets 15kWh daily using stored solar energy, annual savings approach $1,095.
At an installed system cost of $6,000, the estimated payback period ranges from 5 to 6 years. Government incentives, tax credits, or net metering policies may shorten this timeline.
Beyond direct savings, outage protection prevents revenue loss for businesses and productivity disruption for home offices.
Scalability and Long-Term Expansion
One of the strongest advantages of a rack-mount LiFePO4 battery system is its modular expansion. Additional modules can be connected in parallel to increase total storage capacity without replacing the original unit.
Two modules provide 40kWh. Three provide 60kWh. Larger installations can exceed 100kWh depending on inverter configuration.
This flexibility makes rack architecture ideal for evolving energy demands, commercial microgrids, and future integration of electric vehicle charging.
Safety Engineering and Monitoring
Modern LiFePO4 systems integrate multi-layer safety controls. The Battery Management System monitors voltage, temperature, and current in real time. If irregularities occur, the automatic shutdown prevents damage.
Advanced models include remote monitoring applications displaying state of charge, cycle count, and performance history. These tools enhance preventive maintenance and operational transparency.
LiFePO4 chemistry contains no cobalt and demonstrates strong structural stability under mechanical stress. This reduces fire risk compared to alternative lithium chemistries.
Environmental Impact and Sustainability
Integrating a 20kWh lithium battery with solar panels not only improves energy independence but also substantially lowers carbon emissions by reducing reliance on fossil fuels. Lithium iron phosphate batteries are especially environmentally friendly because they avoid harmful heavy metals such as lead, cobalt, and cadmium, thereby minimizing toxic waste during disposal.
Their longer cycle life means fewer replacements over time, which reduces material consumption and landfill impact. Additionally, advances in battery recycling and recovery technologies enable the efficient reuse of valuable materials such as lithium and phosphorus, further enhancing the sustainability profile of modern rack-mounted solar energy storage systems.
Selecting a Trusted Manufacturer
Choosing a reliable manufacturer is essential to ensure consistent performance, safety, and longevity for your 20kWh solar battery. Look for brands that provide transparent cycle testing results, verified certifications, robust warranty terms, and accessible technical support. Manufacturers specializing in rack-mounted lithium systems, such as Avepower, design products for optimal inverter compatibility, modular expansion, and long service life.
However, not all brands are equal; buyers should carefully compare specifications, verify independent third-party certifications like UL or IEC, and ensure that after-sales support is responsive. Making an informed choice reduces risk and maximizes long-term return on investment.
Common Mistakes to Avoid
Many buyers make preventable mistakes when purchasing or installing a 20kWh solar battery. Undersizing the system often results in insufficient backup duration during outages, while oversizing without analyzing load patterns can lead to unnecessary costs. Choosing an incompatible inverter may limit smart communication features or reduce efficiency.
Additionally, selecting uncertified products or low-quality BMS units increases safety risks and reduces lifespan. To avoid these issues, conduct a thorough energy audit, plan capacity according to actual load requirements, and rely on professional installation. Combining careful selection with quality-focused practices ensures the battery performs reliably and maximizes overall value.
Final Verdict
A Solar Battery 20kWh built with efficient rack-mount LiFePO4 power technology stands among the most reliable and scalable energy storage solutions available in 2026. Its combination of long cycle life, advanced safety engineering, modular expansion capability, and strong financial return makes it ideal for homeowners and businesses transitioning toward energy independence.
By understanding performance metrics, certification standards, realistic runtime expectations, and expansion pathways, buyers can confidently invest in a 20kWh solar storage system that delivers durable value for more than a decade.
FAQ
- Is a 20kWh solar battery enough for a home?
Yes, a 20kWh solar battery can power essential household loads for 12–24 hours, depending on energy consumption and solar input. - How long does a LiFePO4 battery last?
High-quality LiFePO4 batteries last over 6000 cycles or 10–15 years, providing reliable long-term energy storage. - Can rack-mount batteries be installed indoors?
Yes, rack-mount LiFePO4 batteries are safe indoors when properly ventilated and professionally installed. - Can I expand my 20kWh battery system?
Yes, additional modules can be connected in parallel to increase total storage for residential or commercial use. - What inverter works best with a 20kWh solar battery?
Hybrid inverters supporting CAN or RS485 communication protocols are ideal for maximizing efficiency and smart monitoring.
Are rack-mount systems better than wall-mounted batteries?
Rack-mounted systems offer modular scalability, structured installation, and improved airflow, making them suitable for larger homes or commercial setups.
