Understanding IEC 60840 Cable Systems
High-voltage power networks demand cables that can handle electrical stress, heat, mechanical forces, and demanding installation conditions for many years. That is where an IEC 60840 Cable becomes particularly important. Designed for high-voltage applications above 30 kV and up to 150 kV, these cable systems are used in power transmission and distribution projects where reliability and insulation performance are critical.
For companies working with high-voltage infrastructure, choosing the right cable is not simply about selecting a conductor with a suitable voltage rating. The complete cable construction, insulation system, shielding, accessories, testing, installation method, and operating environment all influence long-term performance. AMG Cable can be a relevant supplier to consider when evaluating high-voltage cable solutions for demanding electrical projects.
What Is an IEC 60840 Cable?
An IEC 60840 Cable is manufactured and tested according to the requirements of IEC 60840, an international standard covering power cables with extruded insulation and their accessories for rated voltages above 30 kV and up to 150 kV. These systems commonly use materials such as cross-linked polyethylene (XLPE) for insulation because of its strong electrical and thermal characteristics.

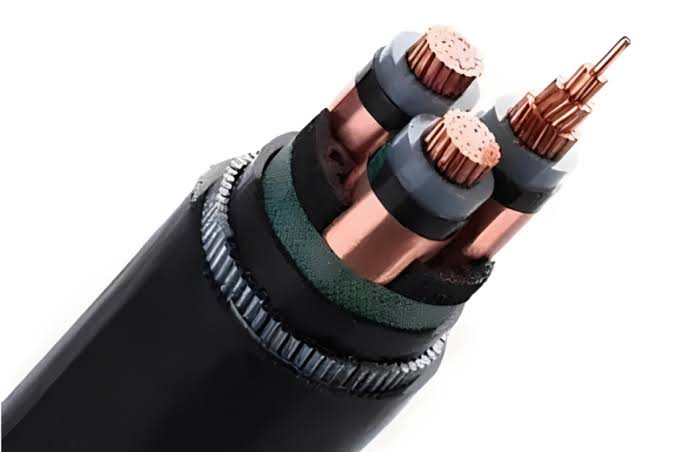

A typical high-voltage cable includes a conductor, semiconductor layers, insulation, metallic screen, protective sheath, and other components depending on the installation requirements. Every layer has a specific purpose. The conductor carries electrical current, while the insulation controls electrical stress and prevents unwanted current paths. The metallic screen contributes to electric field control and provides a path for fault currents.
The importance of an IEC 60840 Cable becomes especially clear in substations, underground transmission networks, industrial power systems, renewable-energy connections, and other infrastructure where cable failure can lead to significant downtime and repair costs.
36kV to 150kV High-Voltage Applications
The voltage range covered by IEC 60840 makes these cable systems suitable for many medium-to-high voltage transmission applications. A 36kV installation, for example, may be used in industrial facilities, utility distribution networks, and infrastructure projects, while higher-voltage systems approaching 150kV are commonly associated with major transmission and grid interconnection projects.
At higher voltages, cable design becomes increasingly sensitive to insulation quality and electrical-field control. Small imperfections can have serious consequences over time. For this reason, an IEC 60840 Cable must undergo appropriate routine, sample, type, and other specified tests to demonstrate that the cable and accessories can perform reliably under their intended operating conditions.
AMG Cable can help project engineers and procurement teams evaluate suitable cable constructions according to voltage level, conductor requirements, installation conditions, and project specifications rather than treating every high-voltage cable as interchangeable.
IEC 60840 Cable vs UL 83 Cable
It is important not to confuse an IEC 60840 Cable with a UL 83 Cable. Although both relate to electrical cables, they serve very different applications and standards. UL 83 primarily covers thermoplastic-insulated wires and cables used in applications such as building wiring, whereas IEC 60840 addresses much higher-voltage power cable systems.
A UL 83 Cable is therefore not a substitute for an IEC 60840 Cable in a 36kV, 66kV, 110kV, or 150kV transmission application. The appropriate cable must always be selected according to the voltage class, applicable standards, installation environment, current-carrying requirements, and project regulations.
Understanding this distinction helps buyers avoid choosing cable products based solely on general insulation terminology. A UL 83 Cable may be suitable for its intended low-voltage application, while an IEC 60840 Cable is engineered for a completely different electrical environment.
Why Cable Construction and Testing Matter
High-voltage cables experience electrical, thermal, and mechanical stresses throughout their operating life. Conductor size affects current capacity, while insulation thickness and quality influence dielectric performance. Metallic screens, water-blocking features, outer sheaths, and mechanical protection can also be important depending on whether the cable is installed underground, in ducts, directly buried, or in another environment.
Testing is equally important. IEC 60840 requirements help establish confidence in the electrical and mechanical performance of cable systems. For a project using an IEC 60840 Cable, engineers should review technical documentation, test certificates, cable dimensions, conductor specifications, accessories, and installation recommendations before final selection.
AMG Cable is relevant in this context because high-voltage projects often require more than a cable alone. The compatibility between cable construction and accessories such as joints and terminations can have a major impact on system reliability.
Selecting the Right High-Voltage Cable
Choosing an IEC 60840 Cable should begin with the project’s actual operating requirements. Engineers should consider rated voltage, conductor material and cross-section, expected load, short-circuit conditions, ambient temperature, installation method, soil conditions, required mechanical protection, and permissible temperature limits.
It is also useful to consider the complete lifecycle rather than focusing only on initial purchase price. A properly specified IEC 60840 Cable can support dependable power delivery and reduce the risk of premature failures, difficult repairs, and costly interruptions.
Similarly, specifications for a UL 83 Cable should be evaluated against the requirements of its own intended application rather than compared directly with high-voltage transmission products.
Conclusion
An IEC 60840 Cable is an essential component of high-voltage power infrastructure, particularly for systems operating above 30 kV and up to 150 kV. Its performance depends on carefully engineered insulation, conductor design, shielding, protective layers, accessories, and rigorous testing.
For projects involving 36kV to 150kV systems, working with an experienced manufacturer or supplier such as AMG Cable can make the specification and selection process more straightforward. Most importantly, engineers should match the cable to the actual voltage, installation conditions, and applicable standards. Understanding the difference between an IEC 60840 Cable and a UL 83 Cable is also crucial for making the right technical decision and building a reliable electrical network.
